COLO-191S Automatic Powder Coating Gun Control Cabinet

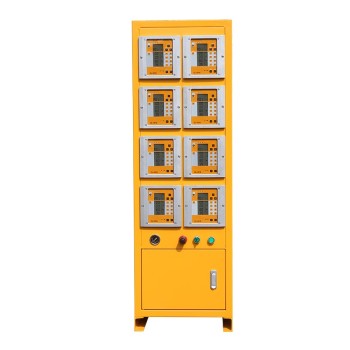

COLO-191S Automatic Powder Coating Gun Control Cabinet
| Categories | Automatic Powder Coating Machine |
|---|---|
| Brand | COLO powder coating machine |
| Model | COLO-191S |
| Delivery Time | 7-10 Working Days |
| Shipping | By Sea |
| Application | Metal Finishing Industry |
| FOB port | Ningbo/Shanghai |
| Update Time | Dec 22,2024 |
Detail Information
COLO-191S Automatic Powder Coating Gun Control Cabinet
1. Multi controllers installed on a central cabinet with compact design and simple operation.
2. The quantity of controller units can be tailored as customer's demands, maximum up to 24 sets.
3. It is an ideal entry into series production line that improves coating production and reduces downtime.
4. Suitable for high speed converised powder coating lines with consistent uniform film thickness.
5. Work with painting reciprocators offering quality finishes, large powder savings and a quick payback.
Product Details
COLO-191S Powder Gun Controller
* This machine applies digital valve control technology for fast and precise adjustment that ensures adjust the powder output and atomization, flexibly control voltage and current.
* There are 3 one-touch intelligent buttons which stands for 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.
* Allows experienced users create and store a library of personalized programs which are optimized for their parts and powders.
* Thanks to the DVC technology it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and unifrom coating results.
COLO-08 Automatic Spray Gun
* Lightweight, compact gun provides 100 kV and the highest transfer efficiency available for venturi-based coating systems.
* Air-purge cleanable design for fast, easy cleaning, without gun disassembly, a requirement for all quick color change applications.
* Superior Faraday-cage penetration and recoating capability to adapt a wide range of coating challenges, superior powder coating coverage.
* Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.
Product Parameters
|
Model
|
COLO-191S
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 500g |
|
Temperature range in use |
-10 ℃+50 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
Product Picture
