COLO-668A Automatic Powder Coating Gun System
COLO-668A Automatic Powder Coating Gun System
| Categories | Automatic Powder Coating Machine |
|---|---|
| Brand | COLO powder coating machine |
| Model | COLO-2200D-668A |
| Delivery Time | 7-15 Working Days |
| Shipping | By Sea |
| Application | Metal Finishing Industry |
| Stroke | 1.5m, 1.8m, 2m , 2.5m |
| FOB port | Ningbo/Shanghai |
| Update Time | Dec 22,2024 |
Detail Information

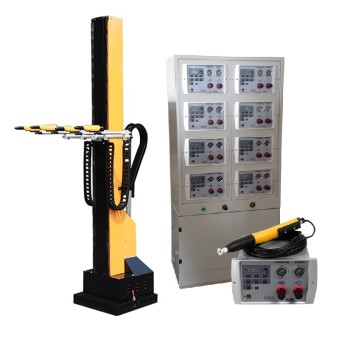

COLO-668A Automatic Powder Coating Gun System
Application
The Automatic Powder Coating Gun System includes:
COLO-2200D powder coating reicprocator,
COLO-668 automatic powder coating gun and central control cabinet, working with reciprocators, obtain consistent and uniform thickness of powder coatings, improve coating production and reduces downtime,, meet the demands of large scale production. Particularly suitable for users who switch from manual application to automatic powder coating.
COLO-2200D Powder Spray Reicprocator
Excellent Features
1. a frequency adjustable motor controlled by PLC, giving more smooth, stable and precise motion.
2. Linear rail guide mechanism, travel through a belt, gives more gentle up-and-down motion with less wear.
3. Heavy-loaded reciprocator with reliability to carry up to 24 pcs powder spray guns
4. Moving speed and stroke can be easily set at the touching screen with 20 storable programs.
5.carries a certain quantity of spray guns for up-and-down motion, delivers excellent uniformity and efficiency of powder coating.
|
Model |
COLO-2200D |
|
Power Supply
|
AC 220V/110V 50-60Hz
|
|
Motor Power
|
1.1kw
|
|
Speed Range
|
0-50m/min(0-0.8m/s)
|
Max. Loading Capacity | 25kgs |
Stroke Length | 1.5m/2m/2.5m |
Standard Size | 850*680*2970mm |
Reciprocator Weight | 295kg |
Central Control Cabinet
Excellent Features
1. The quantity of controller units can be tailored as customer's demands, maximum up to 24 sets.
2. A central control cabinet combines all gun controller for integrated operation, enbales to set parameters only at one host unit to control whole system.
3. Combination of a certain quanlity of automatic powder gun controllers, meet the requirements of serial production, ensures reliability and controllability in the automatic powder coating line.
4. It is the ideal entry into automatic series production offering quality finishes and great powder savings.
COLO-191S Automatic Powder Coating Gun
Excellent Features
Voltage can be flexibly adjusted from 0-100kv, the values will be shown on the digital display for accurate reading.
Designed with intelligent one-touch bottons, switch for 4 preset application programs:
1. Flat coating for simple and flat shape parts.
2. Corner coating for parts with complex shape and deep corners.
3. Recoating for repairing powder coating parts.
4. Pulse coating, repidly recharge the powder for high transfer efficiency, reduces orange peel effect efficiently.
|
Model
|
COLO-668A
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 500g |
|
Temperature range in use |
-10 ℃+50 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 650g/min |
Polarity | negative (-) |
