COLO-800D-A Automatic Powder Coating Gun Set
COLO-800D-A Automatic Powder Coating Gun Set
| Categories | Automatic Powder Coating Machine |
|---|---|
| Brand | COLO powder coating machine |
| Model | COLO-800D-A |
| Delivery Time | 1-3 Working Days |
| Shipping | By Express (DHL, Fedex, Ups) |
| Application | Metal Finishing Industry |
| Package size | 43cm*43cm*56cm |
| FOB port | Ningbo/Shanghai |
| Update Time | Dec 22,2024 |
Detail Information
COLO-800D-A Automatic Powder Coating Gun Set
COLO-800D automatic powder coating guns are widely used in production lines, a central cabinet simplifies the process of multiple powder guns working at the same time, increases operation efficiency significantly.
All powder gun controllers are integrated in a central control cabinet, which saves space and features more convenient to operate.
The quantity of installed control unit can be tailored to meet the production demands.
Product Details

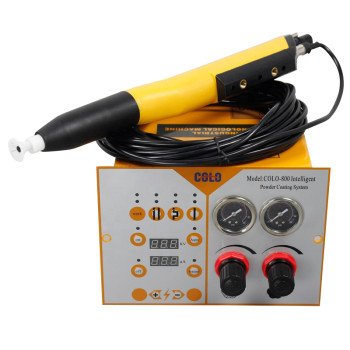

COLO-800D Powder Gun Controller
* Voltage can be easily set by buttons from 0-100kv, the voltage and amperage values will be shown on the digital display for accurate reading.
* Just press the 3 one-touch intelligent buttons, application programs switches automatically between panel coating, corner coating and recoating, giving easy access to powder coating beginners.
Flat coating: ideal for flat shape workpieces.
Corner coating: ideal for complex shape parts with deep corners.
Recoating: ideal for repairing coating.
COLO-08 Automatic Spray Gun
* Lightweight, compact gun provides 100 kV and the highest transfer efficiency available for venturi-based coating systems.
* Air-purge cleanable design for fast, easy cleaning, without gun disassembly, a requirement for all quick color change applications.
* Superior Faraday-cage penetration and recoating capability to adapt a wide range of coating challenges, superior powder coating coverage.
* Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.
Product Parameters
|
Model
|
COLO-800D-A
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 500g |
|
Temperature range in use |
-10 ℃+50 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
Product Picture
