Electric Powder Coat Cure Oven COLO-1515
Electric Powder Coat Cure Oven COLO-1515
Detail Information
Electric Powder Coat Cure Oven COLO-1515
COLO-1515 powder coating oven applies PLC control technology giving precision heating process. Airflow systems promote air mixture for faster temperature rise and uniform heating, creating an even, constant cure for your parts. Electrical powder coating oven ensures the environment clean, an excellent tool for commercial & industrial powder application.
With working size: 1.5x1.5x1.5m, it has enough space for holding batch of small to medium sized parts.
Product Details
PLC Controller

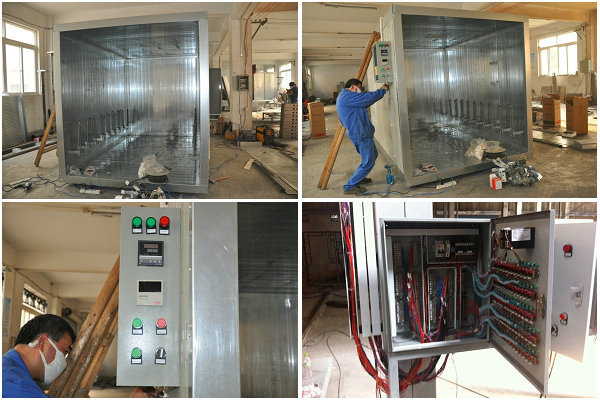

All parameters and functions are set on PLC panel, provides a high precision heating process, such as accurately setting desired temperature & heating time, control the circulation fan.
Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Circulation Fan
0.75kw circulation fan cycles hot airs in the chamber, minimize temperature difference and guarantee uniform-heated chamber, in order to make parts cure with a quality finish with even gloss and consistent color.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
|
Model
|
COLO-1515
|
|
Working Dimension (mm)
|
1500width x 1500 height x 1500 depth
|
Overall Dimension (mm) | 1700 width x 1900 height x 1700 depth |
|
Power supply
|
Electric
|
Voltage | 220V/380V(50-60Hz) |
Power supply | Electric/18kw |
Warm-up Time | 15-30min (180°C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250°C |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 805-1677m3/h |
Transportation | Trolley |
