Small Test Powder Coating Machine KF-X1-TB
Small Test Powder Coating Machine KF-X1-TB
| Categories | Lab Powder Coating gun |
|---|---|
| Brand | COLO powder coating machine |
| Model | KF-X1-TB |
| Delivery Time | 1-3 Working Days |
| Shipping | By Express (DHL, Fedex, Ups) |
| Application | Metal Finishing Industry |
| Package size | 43cm*43cm*56cm |
| FOB port | Ningbo/Shanghai |
| Update Time | Dec 22,2024 |
Detail Information
Small Test Powder Coating Machine KF-X1-TB

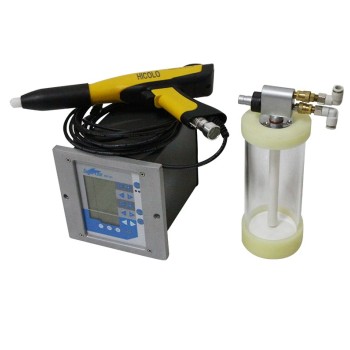

KF-X1-TB small powder coating machine equipped with 2 lbs cup hopper for lab use, sample coating or powder manufacturer testing job, etc. The cup is self-fluidizing and is eays to clearn, make color changes fast and easy.
It offers powerful digital controller and intuitive operator interface, give your great flexibility and application accuracy.
Product Details
KF-X1 Powder Gun Controller
* This machine applies digital valve control technology for fast and precise adjustment that ensures adjust the powder output and atomization, flexibly control voltage and current.
* There are 3 one-touch intelligent buttons which stands for 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.
* Allows experienced users create and store a library of personalized programs which are optimized for their parts and powders.
* Thanks to the DVC technology it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and unifrom coating results.
COLO-08 Electrostatic Spray Gun
* Long-lasting 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency and saves materials.
* Remote control of changing powder flow and application programs on the back cover, fast and easy.
* Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.
Powder Coating Hopper
Size: D10xH20cm, Capacity: 2 pounds powders.
* Made of non-stick materials, can be dismounted into parts, which is easy to clean during color change
* The powder hopper with fluidizng board prevents the powder block, delivers smooth powder flow.
* It is also well sealed that keeps the powders from contaminants and damp.
Product Parameters
|
Model
|
KF-X1-TB
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 500g |
|
Temperature range in use |
-10 ℃+50 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
