Automatic Painting Robot Powder Coating Reciprocator
Automatic Painting Robot Powder Coating Reciprocator
| Categories | Powder Coating Reciprocator |
|---|---|
| Brand | COLO powder coating machine |
| Model | COLO-2000D |
| Delivery Time | 7-15 Working Days |
| Shipping | By Sea |
| Stroke | 1.5m, 1.8m, 2m , 2.5m |
| Application | Metal Finishing Industry |
| FOB port | Ningbo/Shanghai |
| Update Time | Oct 18,2024 |
Detail Information

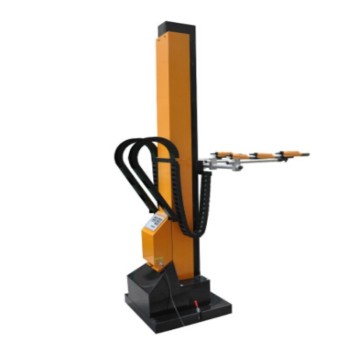

Automatic Painting Robot Powder Coating Reciprocator
COLO-2000D powder coating reciprocator is designed for consistent and uniform coating in automatic production line. It can carry 2-12 pcs powder spraying guns are mounted on an arm extended from a carriage, whose movement is programmed in various speeds & strokes to suit conveyor speed & object height respectively, reliable and quiet reciporcating lift.
Product Details
Controller System
A user-friendly panel interface offers you great flexibility to set parameters and control the whole process.
* 0-100kv digitally adjustable for voltage, working parameters clearly shows on the screen.
* The spraying stroke and speed can be adjusted on the control panel,and 80 sets of spraying modes can be stored.
Excellent Features & Benefits
* Increased Uniformity - smooth and precise movement.
* Reduce powder consumption - intelligent and digital control system.
* Quick Job Change - preset settings for automatic selection of stroke and speed.
* 80 storable programs- control speed and stroke length for different parts individually
* Three stroke length sizes - 1.5m, 2m, 2.5m for choice.
Product Parameters
Model | COLO-2000D |
Rated voltage | AC220V~240V/50~60Hz |
Motor Power | 1.1KW |
Speed Range | 0-50m/min(0-0.8m/s) |
Stroke | 1.5m/2m/2.5m |
Standard Size | 850*680*2970mm |
Speed control method | Frequency conversion |
Qty of Spray Guns Loading | 2-24 pcs |
