Box Feed Powder Coating Gun System
Box Feed Powder Coating Gun System
| Categories | Box Feed Manual Coating machine |
|---|---|
| Brand | COLO powder coating machine |
| Model | KF-X1 |
| Delivery Time | 1-3 Working Days |
| Shipping | By Express (DHL, Fedex, Ups) |
| Application | Metal Finishing Industry |
| Weight | 70cm*56cm*54cm |
| FOB port | Ningbo/Shanghai |
| Update Time | Nov 21,2024 |
Detail Information

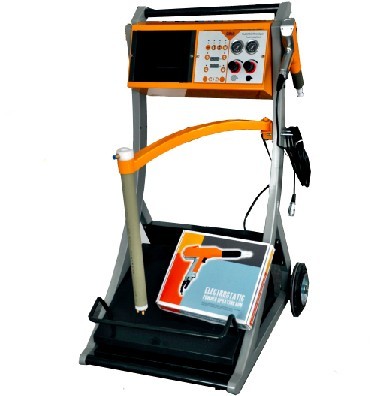

Box Feed Powder Coating Gun System
This powder coating gun system equipped with 2 different sizes of small hoppers to handle any type of powder and any size job. The box feed type system conveys powders directly from the original box to the gun, users do no need to clean the container during color change, suits the demands of fast color change.
Product Details
KF-X1 Powder Gun Controller
* This machine applies digital valve control technology for fast and precise adjustment that ensures adjust the powder output and atomization, flexibly control voltage and current.
* There are 3 one-touch intelligent buttons which stands for 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.
* Allows experienced users create and store a library of personalized programs which are optimized for their parts and powders.
* Thanks to the DVC technology it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and unifrom coating results.
COLO-08 Electrostatic Spray Gun
* Long-lasting 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency and saves materials.
* Remote control of changing powder flow and application programs on the back cover, fast and easy.
* Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.
KF-X1 Powder Coating Gun Parts
* All the parts for the KF-X1 powder coating gun is best configuration.
* The grounded powder hose embeded with carbon trips is designed for anti-static, smoothly convey the powders from the hopper to the gun.
* Powder injector enables easily assembling to the machine only by manual, and gives uniform powder output for higher coating quality.
* Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.
Product Parameters
|
Model
|
KF-X1
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 500g |
|
Temperature range in use |
-10 ℃+50 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
